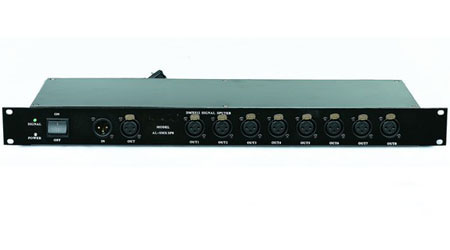

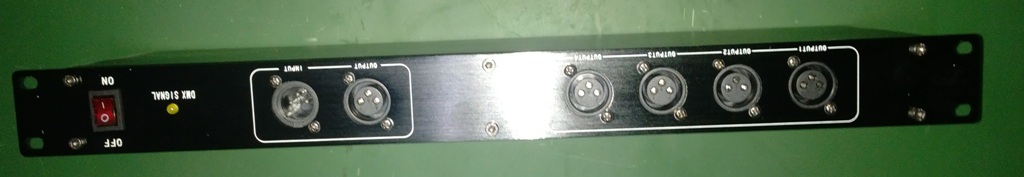

4/6/8 way DMX SPLITTER
- Brand: Yinlang
- Type: YL-K04F/K06F/K08F
- Price: RMB
- Promotion: RMB ( 0 Customers Bought)
Technical parameter
Fully compliant to DMX-512 (1990) speciflcation.
Inputs and outputs are true RS-485 rated.
3 pin XLR input and a passive loop through.
4 way isolated DMX splitter output.
Input isolated from outputs over 1000VDC.
Outputs are isolated from each other over 1000VDC.
Power supply, 90~240VAC 50Hz / 60Hz , 15W .
1U high 19 inch rack mount construction
Size /mm 530*180*100
Weight 1.8/2.3 19”1U
Technical parameter
Fully compliant to DMX-512 (1990) speciflcation.
Inputs and outputs are true RS-485 rated.
3 pin XLR input and a passive loop through.
6ch isolated DMX splitter output.
Input isolated from outputs over 1000VDC.
Outputs are isolated from each other over 1000VDC.
Power supply, 90~240VAC 50Hz / 60Hz , 15W .
Size ： 32*16*6CM
Technical parameter
DMX Splitter is a DMX512 distribution amplifier It is specially designed
for connection of DMX receivers (dimmers, color changers, moving lights
,etc.) in a star configuration.
DMX Splitter can surmount the restriction that single RS485 can only
connect 32 sets of equipment
The multiple output optically isolated DMX512 distribution amplifiers have
become necessary in many DMX512 systems.
DMX Splitter provide total electrical ground isolation between different
branches of the star. This greatly decreases problems with ground loops.
It amplifies and refits the DMX signal, that it makes the DMX data
transmission more reliable.
Input voltage : AC90V~240V, 50Hz / 60Hz
Power rated :15W ◎size :19’1U 530*190 *110mm
G.W: 2.3kg
